技术参数

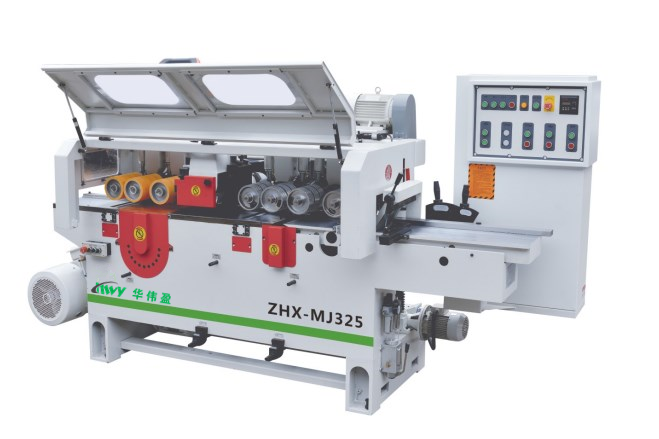

| 设备型号 | Model | ZHX-MJ325 |
| 最大加工宽度 | Max . Wonking Width | 250mm |
| 最大加工厚度 | Max . Workimg Thickness | 80mm |
| 送料速度 | Feeding Speed | 5-20m/min |
| 主轴直径 | Spindle Diameter | 40mm |
| 锯轴直径 | Saw Shaft Diameter | 50mm |
| 主轴转速 | Spindle Speed | 6000r/min |
| 锯轴转速 | Saw Shaft Speed | 4000r//min |
气源压力 | Air Pressure | 0.4mpa |
第一下轴 | The first lower shaft | 5.5KW/7HP |
第一上轴 | The first upper shaft | 7.5KW/10HP |
送料电机 | Feeding motor | 4KW/5.5HP |
送料升降电机 | Feeding lift motor | 0.75KW/1HP |
| 锯轴电机 | Saw Spindle motor | 22KW/30HP |
| 总功率 | Total power | 40.12KW/52HP |
| 锯轴升降电机 | Saw Shaft lift motor | 0.35KW/0.5HP |
| 第一下轴 | Firstr Top Spindle | 125mm |
| 第二上轴 | Second Top spindle | 125mm |
| 下锯轴 | Lower Saw Shaft | 185mm-305mm |
| 送料轮直径 | Feeding Wheel Diameter | 140mm |
| 吸尘管直径 | Dust Absorption Tube Diameter | 125mm |
| 外形尺寸（长*宽*高）mm | Overall Dimensions(L*W*H) | 2900*1410*1650mm |
注：华伟盈木工机械对产品规格及设计细节不断研究改进，上述规格若有变更，恕不另行通知。
